Bushing & Sleeves kit A-Arms Can Am 12-
266,78 € 266,78 €
incl. 20% VAT plus shipping costs

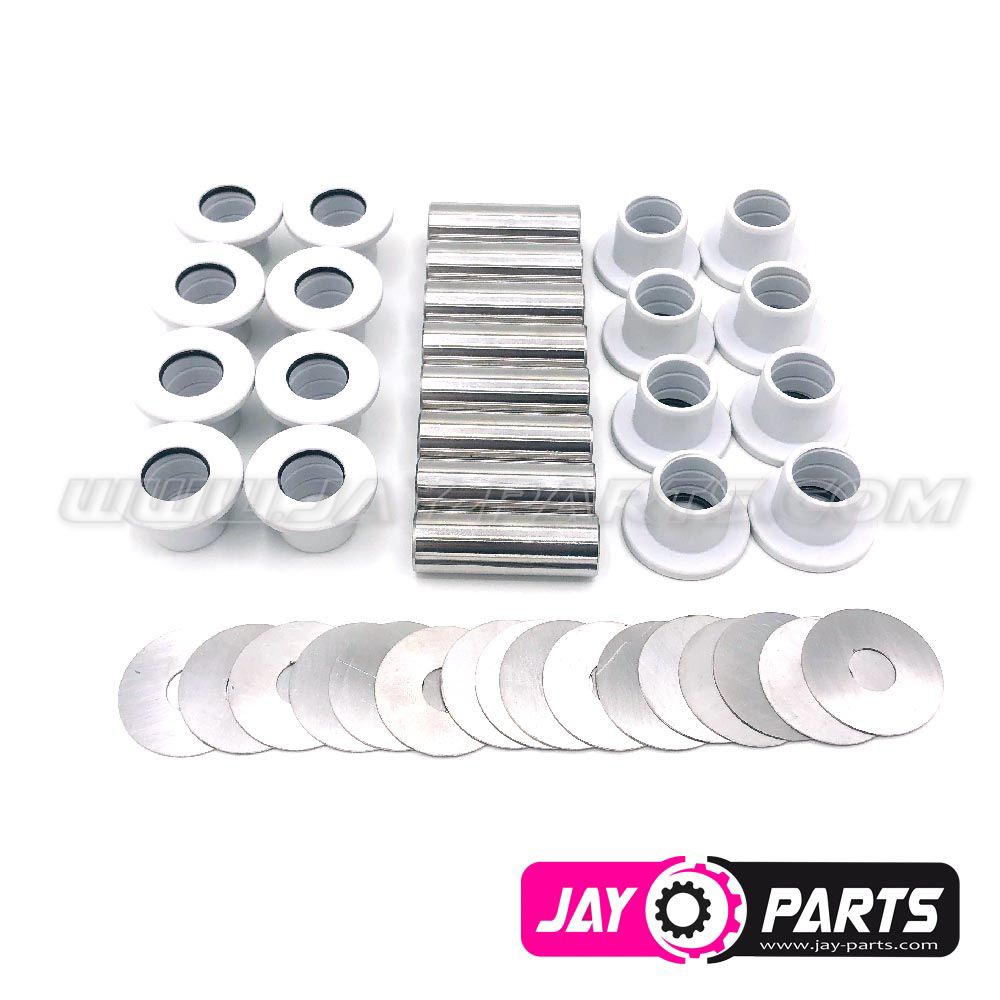

JAY PARTS bushing & sleeves kit A-Arms Can Am 12-
** NEW: now with stainless steel wear washers **
The sleeves are made of hardened stainless steel, only the best is good enough for our claim!
In the bushes, PE-GL with inner spiral groove was chosen as a self-lubricating, wear-resistant material. Sealing against dirt and water takes over an O-ring.
- hardened stainless steel sleeves
- bushings PE-GL
- inner spiral groove
- sealed with O-rings
- stainless steel wear washers
- Made in Europe
Availability : in stock
In stock (can be backordered)
JAY PARTS bushing & sleeves kit A-Arms Can Am 12-
The sleeves are made of hardened stainless steel, only the best is good enough for our claim!
The bushings are made of PE-GL with oil additive as a self-lubricating wear-resistant material which are provided with a inner spiral groove inside. Sealing against dirt and water takes over an O-ring.
FEATURES
- hardened stainless steel
- bushings PE-GL with oil additive and inner spiral groove
- sealed with O-rings
DELIVERY
8 sleeves
16 bushings
16 washers
1 set is for one vehicle left and right side.
REPLACES part number: 703500875, JP0084
RECOMMENDATION
Always swap both sides, as there is a big difference in quality compared to the original spare parts.
For installation, we recommend Bel-Ray Waterproof Grease. The grease you can also use to lubricate your vehicle and you can find it in our shop too.
WORKS WITH THE FOLLOWING MODELS:
see model list
ATTENTION ON ASSEMBLY
The bushings fit exactly and the O-rings seal up against water and mud and furthermore the grease doesn´t leak! Don´t hit with a hammer on the bushings. Please be sure that there is enough grease in the bushings before installation. After use when greasing, please fill in grease on the grease press only until a first resistance occurs.
Model list
ATV
Outlander 450/500/570/650/800/850/ 1000 all models | 2012 – |
Outlander MAX 450/500/570/650/800/850/ 1000 all models | 2012 – |
Outlander 6X6 – 450/650/1000 all models | 2016 – |
Renegade 500/570/650/800/850/1000 all models | 2012 – |
UTV oder SXS
Commander 800/1000 alle Modelle | 2012 – 2021 |
Defender MAX HD5/HD8/HD10 alle Modelle | 2017 – |
Defender HD5/HD8/HD10 alle Modelle | 2018 – |
Traxter HD5/HD8/HD10 alle Modelle | 2016 – |
Traxter MAX HD8/HD10 alle Modelle | 2017 – |
Maverick 800/1000 alle Modelle | 2013 -2020 |
Maverick Trail 800 alle Modelle | 2018 – 2021 |
Maverick Sport 1000R alle Modelle | 2018 – 2021 |
Maverick Sport MAX 1000R alle Modelle | 2018 – 2021 |
